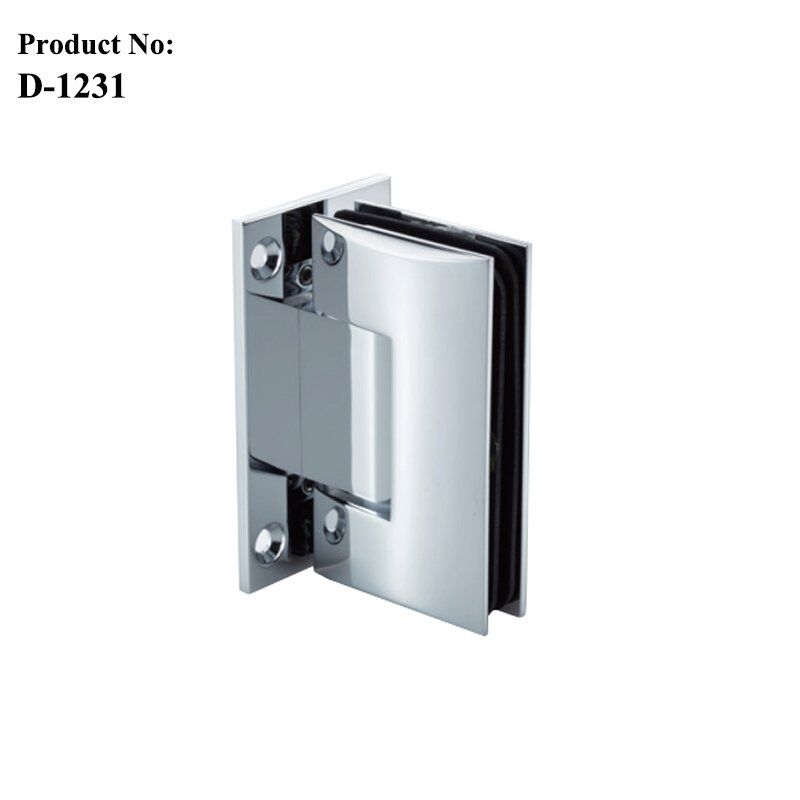

Standard Wall Mount Full Back Plate Grid Shower Hinge

SKU N/A Category Tag

Available in brushed nickel, polished bright chrome, and oil rubbed bronze.  Other finishes could also be special ordered.  Each hinge includes gaskets, cutting template and fasteners.

Additional information

Glass Fitness

8-12mm

Construction

Soild Forge Brass

Max Capacity

45kg

Screws

Allen Screws, Philips Screws

Self-Closing

25 Degree

Gaskets

Black Rubber, PVC

Hinge Swings

90° in and 90° out

Product Details:

Our innovative shower products are produced with the highest quality components available. We are always dedicated to providing the elegant, stylish shower designs at a price that creates ultimate value.

Techinical Details:

  1. Ensure the wall is strong enough
  2. Fits 10mm thick of glass, 8-12mm is also suitable if pads are used
  3.  The Glass can be 45 kgs as maximum weight and up to 1000mm in width
  4. Double actionnon-handed 90°, self-closing when the door stayat 25° approximately
  5. Fasten all of the fixing screws
  6. Open-close time: 100,000 times
  7. Salt Spray test: 48 hours
